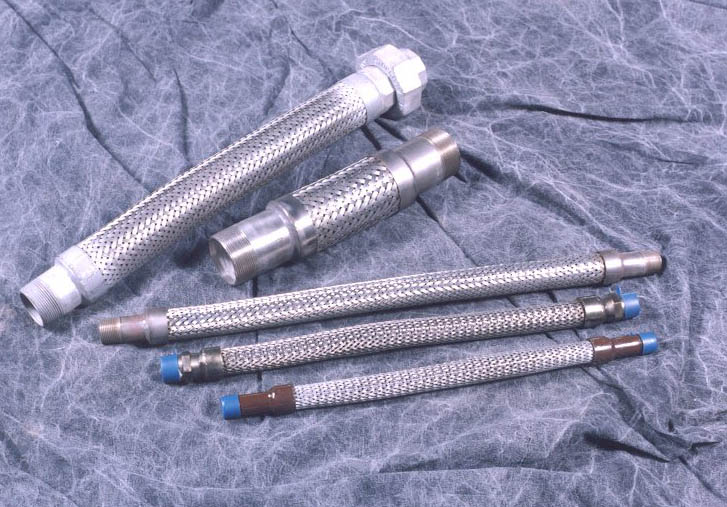

Applegate Industrial Materials manufactures a complete line of braided connectors for both vibration control and misalignment compensation. Stainless steel annular corrugated flex inside of a layer of stainless steel woven braid, all welded into a strong, leak tight assembly. Each hose assembly individually tested to 150 P.S.I.

Manufactured with flanged or threaded ends in standard length stocked at 12 inches overall, but available in longer and shorter lengths to meet our customers needs. Additionally, A.I.M. can rapidly calculate the length required to accept misalignment above 1/4 inch (standard) up to several inches of offset.

Additional custom fittings, alloys, and flex designs are available to meet unusual customer needs. With pressure testing capabilities to 20,000 P.S.I.

Applegate Industrial Materials' Quality, Customer Service, and Delivery are second to none in the industry. Then taking into consideration price, the value of doing business with A.I.M. is a simple conclusion.
