ESS Product Sheet

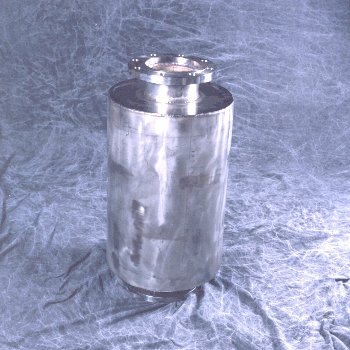

Exhaust System Silencers
Click photo to see a larger picture





Dimensions

A:
Outside Diameter of Inlet or Outlet
B: Outside Diameter of Main Containment Can
C: Installed Length
D: Can Length

Styles
1: Weld Ends - Stainless steel on silencers
2: Pipe Threaded - national pipe thread (NPT) male
3: Flanged - standard ASA*

Product Pricing

  Size Dimensions Price
Part # A B C D Style 1 & 2
AIM-03 3.500" 6.625" 15" 9" $215.00
AIM-04 4.500" 8.625" 18" 12" $250.00
AIM-05 5.563" 10.750" 21" 15" $290.00
AIM-06 6.625" 12.750" 24" 18" $365.00
AIM-08 8.625" 16.000" 27" 21" $435.00
Call for Style 3 pricing.

*ASA=American Standards Association. 150#, also available in engine manufactured flange (CAT, Detroit, Cummins, etc.)
